Equipment name and model

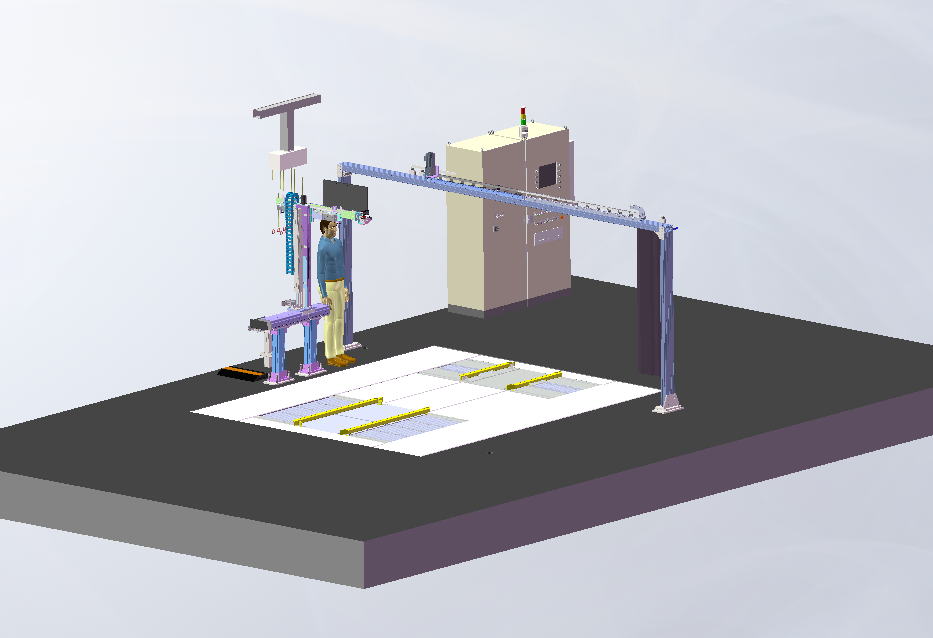

The HUD-2000 head-up display calibration system consists of:

Vehicle alignment
HUD robotic arm camera (optional robot)
HUD target pattern
Automatic black curtain (optional)
Rim and eyebrow height measurement system (optional)
Electrical control cabinet (including PLC, servo driver, industrial computer, etc.)
HUD calibration software IA-HUD (for online adjustment in automobile factories)
Driver assists display
Calibration stand (for calibration)
Complete technical data, including Chinese and English version of data book (including electrical circuit diagram, operation manual, installation manual, etc.).

Detection principle

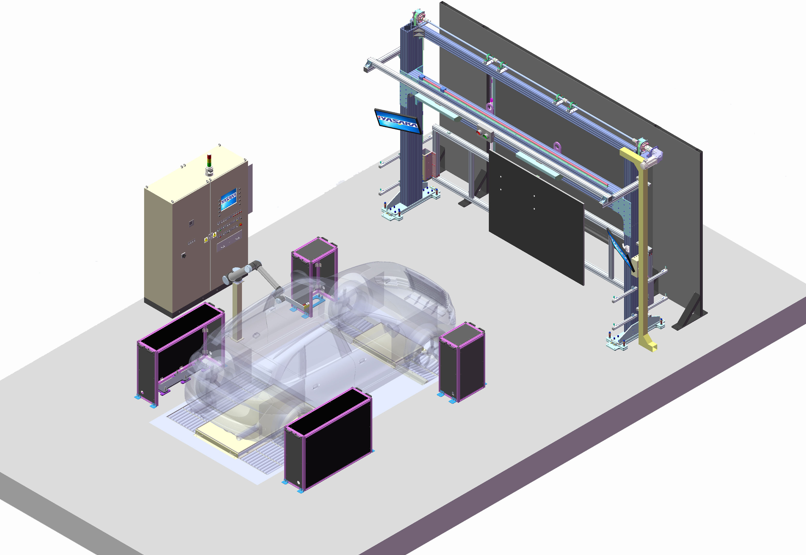

The HUD-2000 is a specialized device developed by IYASAKA for automotive manufacturers to measure and correct image distortion in HUD systems. The test bench consists of: a ground alignment device for vehicle centering, a mechanical arm (optional 6-axis robot), an integrated camera system, HUD correction software, and an electrical control system. The robotic arm positions the camera at the drivers eye level, while the cameras simulated downward angle is precisely calibrated to match human vision. Using high-magnification lenses, the system captures images projected through the windshield and transmits them to image analysis software. The software identifies specific points in the captured images to calculate distortion ratios in both horizontal (H) and vertical (V) directions. When these ratios exceed manufacturer specifications, the system automatically applies correction parameters until compliance is achieved.

surveillance project

W-HUD demarcate ；

AR-HUD calibration;
P-HUD demarcate ；
Eyebrow height measurement (optional);
SVM/360 Panorama impact calibration (optional);
Other ADAS calibration (optional);

Check the beat

50S~180S (HUD beat is different for different manufacturers).

Real cases
