Steering wheel tilt level ——SWB-07

Place of origin: China

Manufacturing company: IYASAKA

scope of supply

The steering wheel leveler SWB-07 consists of:

Horizontal instrument body SWB-07

Bluetooth adapter SWB-07PCG on the computer

Extensible level hand-held bracket (adapted to different steering wheels)

Handheld caliper level bracket (adapted to different steering wheels)

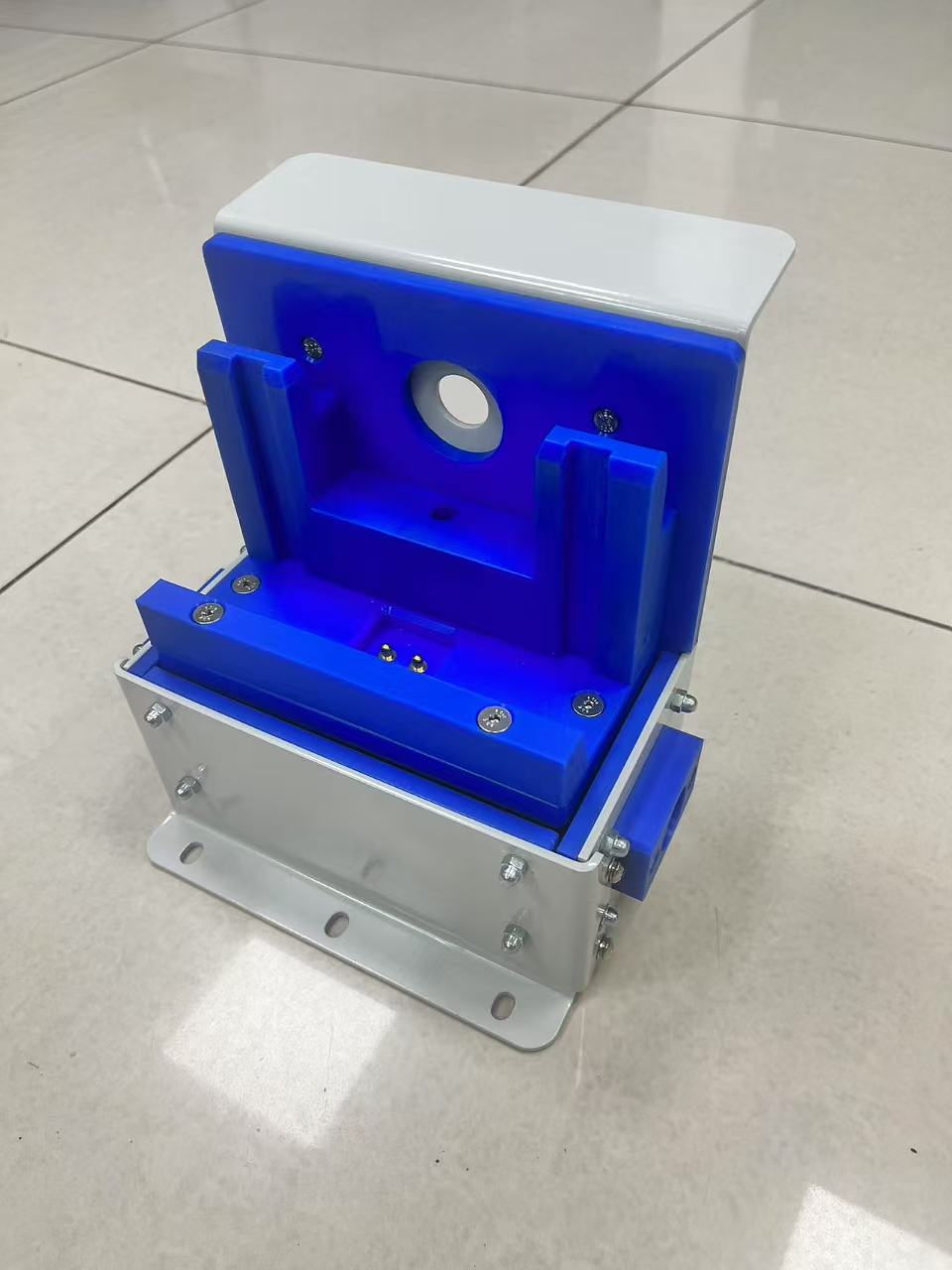

Charging base (vehicle arrival sensor switch)

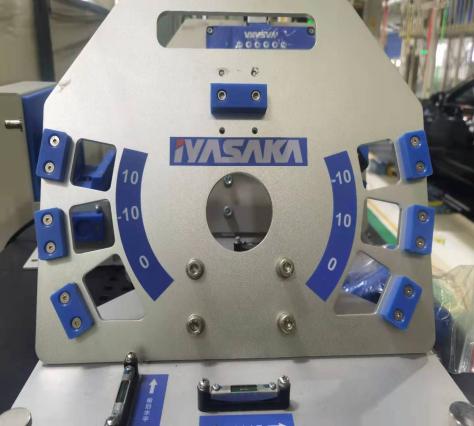

Calibration stand (for calibration)

Integrated OBD communication function, support two CANBUS communication

Complete technical data, including Chinese and English data booklets

Purpose of equipment

The SWB 07 steering wheel level gauge is designed for precise angle measurement and adjustment. During four-wheel alignment measurements, it helps align the steering wheel horizontally. When in use, the SWB-07s support legs are inserted into the steering wheel hub to stabilize the device and maintain its alignment with the wheel. Equipped with an inclinometer sensor, this gauge continuously monitors the steering wheels horizontal angle. The real-time data is transmitted to the alignment system, ensuring optimal vehicle straight-line performance

surveillance project

Steering wheel tilt Angle

OBD communication function (optional)

Steering wheel vertical Angle (optional)

Functioning

Measure the steering wheel tilt Angle and display the three indicators

Monitor vertical Angle function

Temperature monitoring function

Bluetooth wireless communication

wire communication

Emergency charging function

Calibration function (periodic reminder)

Alarm for buzzer power

Set the sampling time

Charging status indicator / Bluetooth connection indicator

6 key operations

essential parameter

Measurement range: ± 15°

Resolution: 0.1°

accuracy ：0.1°

Battery: 18650 lithium ion rechargeable battery

Battery life: 44 hours

Charging time: 2.5 hours (90%)

Battery life: 2 years

Interface: wired/wireless connection, serial port communication

Equipment composition

e193318454b3262927dd4bd8540892b

Horizontal instrument body——SWB-07
